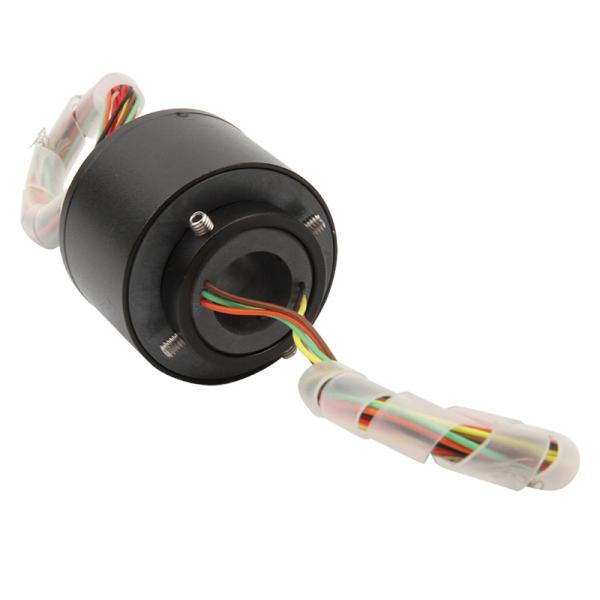

1000mm 2000 Rpm Through Bore Slip Ring Integrate High Frequency Fiber Signal

  • 1
  • 2

Brand Name : JINPAT

Model Number : LPT012B-0602-HS-HT

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, C/C, Paypal

Supply Ability : 500 pieces / week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Total : 6CKT

Detail : 6X2A

Rating Voltage : 240VAC

Dielectric Strength : 500VAC@50Hz

Contact Material : Gold-Gold

Working Speed : 0~2000rpm

Contact Now

1000mm 2000 Rpm Through Bore Slip Ring Integrate High Frequency Fiber Signal

LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can
also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber
brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current
is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.

Electronic & Electruc Mechanical
Circuits Total 6CKT Working Speed 0~2000rpm
Detail 6X2A Inner Diameter Φ12.7mm
Rating Voltage 240VAC Contact Material Gold-Gold
Dielectric Strength 500VAC@50Hz Housing Material Engineering plastic
Insulation Resistance ≥300MΩ@300VDC Lead Wire Length

Stator:300mm

Rotor:300mm
Environment Remarks
Working Temperature -20°C~+125°C Application /
Working Humidity ≤60%RH Other /
IP IP50 Note:"P" stands dor power, "S" stands for signal

LPT012B-0602-HS-HT-Outline Drawing

1000mm 2000 Rpm Through Bore Slip Ring Integrate High Frequency Fiber Signal

1000mm 2000 Rpm Through Bore Slip Ring Integrate High Frequency Fiber Signal

Features:

  • Transmit analog and digital signal
  • The power and signal are mixed transmitted, and the signal categories are as follows:
  • Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
  • Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
  • HD video: SDI, LVDS, etc.
  • Serial communication: RS232, RS485, RS422, etc.
  • Universal Serial Bus: USB2.0
  • Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
  • Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
  • Long service life, maintenance-free
  • Easy to install

Main Applications:
Industrial automation equipment/Medical equipment/Wind power equipment/Test equipment/Exhibition /
display equipment/Robots/Turntable equipment/Amusement equipment/High-speed railway equipment/Packaging
machinery/Ship offshore equipment/Construction machinery
